Papenmeier (Lumiglas) lamps EX
Lamps EX / Luminaires (Ex):
Lumiglas Luminaire ASL55LED-Ex
II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80°C Db:
TECHNICAL DATA:
• Ambient temperature: -20°C / +50°C
a) Gas
EN 60079-0: 2012+A11:2013 General Requirements
EN 60079-1: 2014 Flame-proof Enclosures ‚d‘
Explosion group: IIC (includes IIA and IIB)
Temperature class: T6
b) Dust
EN 60079-0: 2012+A11:2013 General Requirements
EN 60079-31: 2014 Protection by Enclosures ‚t‘
Explosion group: IIIC (includes IIIA and IIIB)
Temperature class: T80°C
• Operating voltage: 24 V AC/DC LED – 11 W/15 W
120-230 V AC/DC LED – 11 W/15 W
Protected by 1A miniature fuse
Equipped with 4 or 7 high-power LED
LIGHTING TECHNICAL DATA:
Connecting data:
Accessories:
Lumiglas Luminaire ASL57LED-Ex
II 2G Ex d(e) IIC T6 Gb / II 2D Ex tb IIIC T80°C Db:
TECHNICAL DATA:
• Ambient temperature: -20°C / +40°C
• Ignition protection category: Ex d(e)
• Explosion groups: IIC (includes IIA and IIB) IIIC (includes IIIA and IIIB)
• Operating voltage: 24 V AC/DC – 35 W;
Equipped with one high-power LED
• Colour temperature: 5000 K
• Luminous flux: 1840 lm
• Beam angle: 35°
Components, design and materials:
• Luminaire body (5) and cover of terminal box (8): Aluminium alloy EN AW-2007,
paint finish RAL 9007
• Light port lens (4): Unit consisting of ring flange (aluminium alloy EN AW-2007,
paint finish RAL 9007), and borosilicate glass
• Hinged mounting bracket (2): Stainless steel 1.4301 (see accessories)
• Cable gland (9): M20 x 1.5
Connecting data:
Accessories:
Lumiglas Luminaire ESL25LED-Ex
II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80°C Db:
TECHNICAL DATA:
• Ambient temperature: +50°C
• Ignition protection category:
a) Gas
EN IEC 60079-0: 2018 General Requirements
EN 60079-1: 2014 Flame-proof Enclosure ‘d‘
Explosion group: IIC (includes II A and II B)
Temperature class: T6
b) Staub
EN IEC 60079-0: 2018 General Requirements
EN 60079-31: 2014 Protection by Enclosures ‘t‘
Explosion group: IIIC (includes III A and III B)
Temperature class: T80°C
• Operating voltage: 24 V AC/DC – 7.5 W
110-230 V AC – 7.5 W
Colour temperature: 5000 K
Luminous flux: 360-430 lm (depending on beam angle)
• Beam angle: 12°; 25°; 38°
Components, design and materials:
• Body of luminaire: Stainless steel 1.4404, polished
• Fastening components: Stainless steel 1.4301 (see ‘Accessories’)
• Cable entry gland: M20 x 1.5
Connecting data:
Accessories:
Lumiglas Luminaire ESL 53LED Ex
II 2G Ex db IIC T6 / T4 Gb / II 2D Ex tb IIIC T85°C / 130°C Db:
TECHNICAL DATA:
• Ambient temperature: from -20°C up to +50°C
• Ignition protection category:
a) Gas
EN IEC 60079-0: 2018 General Requirements
EN 60079-1: 2014 Flame-proof Enclosure ‘d‘
Explosion group: IIC (includes II A and II B)
Temperature class: T6 at 40°C / T4 at 50°C
b) Dust
EN IEC 60079-0: 2018 General Requirements
EN 60079-31: 2014 Protection by Enclosures ‘t‘
Explosion group: IIIC (includes III A and III B)
Temperature class: T85°C at 40°C / T130°C at 50°C
• Operating voltage:
Accessories:
Components, design and materials:
• Body of luminaire: Stainless steel
• Glass: Borosilicate
• Cable entry gland: min. 3m
Lumiglas Luminaire ESL55LED-Ex
II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80°C Db:
TECHNICAL DATA:
• Ambient temperature: from -20°C up to +40°C
• Ignition protection category:
a) Gas
EN IEC 60079-0: 2012 + A11: 2013 General Requirements
EN 60079-1: 2014 Flame-proof Enclosure ‘d‘
Explosion group: IIC (includes II A and II B)
Temperature class: T6
b) Dust
EN IEC 60079-0: 2012 + A11: 2013 General Requirements
EN 60079-31: 2014 Protection by Enclosures ‘t‘
Explosion group: IIIC (includes III A and III B)
Temperature class: T80°C
• Operating voltage:
24 V AC/DC – 11 W/15 W
120-230 V AC/DC LED – 11 W/15 W
Protected by 1A miniature fuse
Equipped with 4 or 7 high-power LED
Accessories:
Components, design and materials:
• Luminaire body (4) and end cover (5): stainless steel 1.4404, polished
• Light port lens (6): unit consisting of ring flange (stainless steel 1.4404, polished) and borosilicate glass
• Hinged mounting bracket (7): stainless steel 1.4301 (see accessories)
• Cable gland (1): M20x1.5
Connecting data:

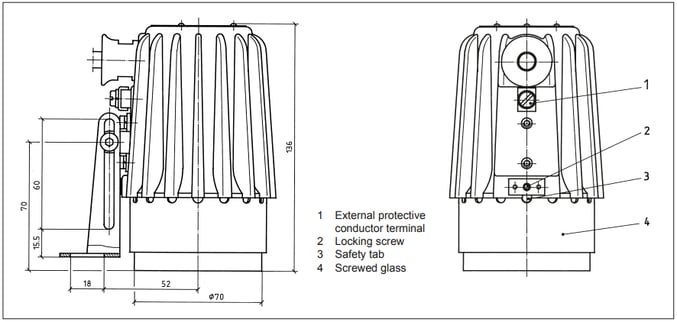

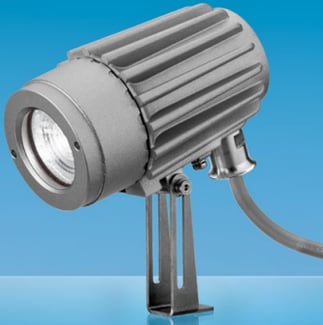

Lumiglas Luminaire USL 05LED-Ex
II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80°C Db:
TECHNICAL DATA:
• Ambient temperature: up to +60°C
Ignition protection category:
a) Gas
EN IEC 60079-0: 2018 General Requirements
EN 60079-1: 2014 Flame-proof Enclosure ‘d‘
Explosion group: IIC (includes II A and II B)
Temperature class: T6
b) Dust
EN IEC 60079-0: 2018 General Requirements
EN 60079-31: 2014 Flameproof enclosure ‚t‘
Explosion group: IIIC (includes III A and III B)
Temperature class: T80°C
• Operating voltage:
24 V AC/DC – 7.5 W
110-230 V AC – 7.5 W
• Colour temperature: 6500 K
• Luminous flux: 360-430 lm (depending on beam angle)
• Beam angle: 12°; 25°; 38°
Accessories:
Components, design and materials:
• Luminaire body: corrosion-resistant cast aluminium alloy, GK-ALSi10Mg
• Cable entry socket: with pressure-tight cast connection cable, 2 m,
Sinotherm 110 H05GG-F 3G 1.5 mm2
• Protective conductor terminal: lamp interior already connected; additional protective
conductor terminal on the outside of the housing
• Light transmission: as a unit of aluminium ring and glass. Seal: Viton
• Mounting parts: see under accessories
Connecting data:
Lumiglas Luminaire USL 06LED Ex
II 2G Ex db eb IIC T6 Gb / II 2D Ex tb IIIC T80°C Db:
TECHNICAL DATA:
• Ambient temperature: -20°C to 50°C
Ignition protection category:
a) Gas
EN IEC 60079-0: 2018 General Requirements
EN 60079-1: 2014 Flame-proof Enclosure ‘d‘
EN IEC 60079-7:2015 + A1:2018 Increased Safety „e“
Explosion group: IIC (includes II A and II B)
Temperature class: T6
b) Dust
EN IEC 60079-0: 2018 General Requirements
EN 60079-31: 2014 Flameproof enclosure ‚t‘
Explosion group: IIIC (includes III A and III B)
Temperature class: T80°C
• Operating voltage:
Accessories:
Components, design and materials:
• Luminaire body: Aluminium
• Glass: Borosilicate
• Flat gasket terminal box: Viton
• Mounting parts: Stainless steel
Lumiglas Luminaire USL 07 LED-Ex
II 2G Ex db eb IIC T6 Gb / II 2D Ex tb IIIC T80°C Db:
TECHNICAL DATA:
• Ambient temperature: up to 60°C
Ignition protection category:
a) Gas and Dust
EN 60079-0: 2012 + A11:2013 General Requirements
EN 60079-1: 2014 Flame-proof Enclosure ‘d‘
EN 60079-7: 2015 Increased Safety „e“
EN 60079-31: 2014 Protection by enclosure ‘t’
• Operating voltage:
24 V AC/DC – 14 W
120-230 V AC – 14 W
• Colour temperature: 5700 K
• Luminous flux: 1150 lm
• Beam angle: 11° or 26°
Accessories:
Connecting data:

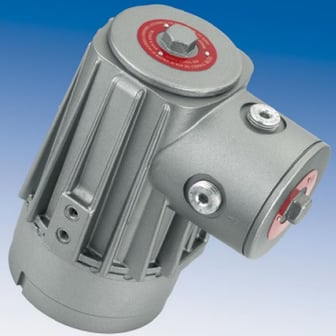

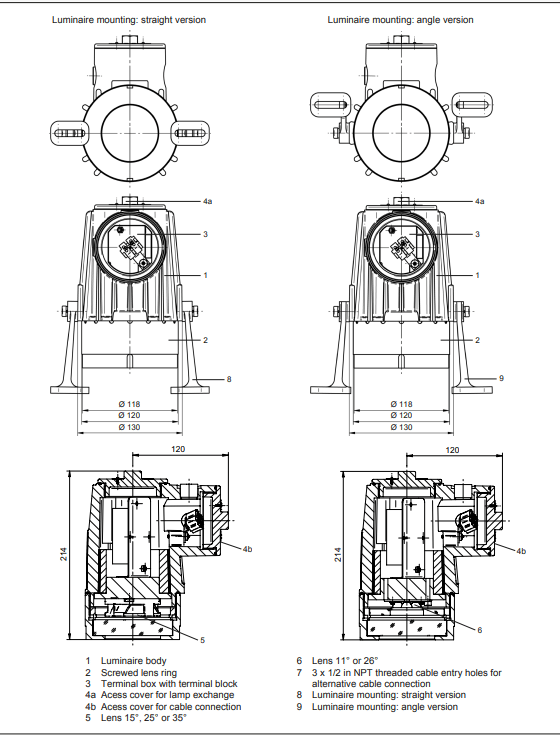

Lumiglas Luminaire USL08LED-Ex
II 2G Ex db eb IIC T6 Gb / II 2D Ex tb IIIC T80°C Db:
TECHNICAL DATA:
• Ambient temperature: up to 50°C
Type of voltage: AC Voltage ( AC )
• Operating voltage: 120 - 240 V LED module COB LED, 20 W 120 - 240 V LED module 7 LED, 20W
• Operating voltage:
120 - 240 V LED module COB LED, 20 W
120 - 240 V LED module 7 LED, 20W
• Colour temperature: 5700 K
• Luminous flux: 1150 lm
Beam angle:
• Simple lens replacement
• 15°, 25° and 35° lenses available (COB LED version)
• Available beam angles 7 LED version: 11° and 26
Materials:
• Luminaire body made of corrosion-resistant cast aluminium alloy, GK-AlSi10Mg
• Light aperture consists of aluminium ring, glass and O-ring seal
• Mounting parts: (see accessories) G-AlSi10Mg
Accessories:
Connecting data:
