Części zamienne do wzierników kołnierzowych podłużnych firmy Göttgens
Wziernik kołnierzowy podłużny typu 225:
Dane techniczne:
Nominal pressure 3 / 6 bar (see table overleaf) / Vacuum
Operating temperatures:
100 °C max. with sodium silicate glass to DIN 8903
243 °C max. with borosilicate glass to DIN 7081
Note: The above indicated temperatures refer to the use of unprotected glass plates, with no protective mica sheets.
Standard materials:
Base flange: 1.4571; 1.4404; 1.4435; S355J2+N; H II
Cover flange: 1.4571; S355J2+N; H II
Glass plates: Sodium silicate to DIN 8903
(Transparent) Borosilicate to DIN 7081
Seals: KLINGERsil C4400, EPDM, Silicone, PTFE, Viton, NBR, Gylon
Cover bolts: Carbon steel, zinked, quality 8.8
to DIN 912: Stainless steel A4-70
Other materials on request.

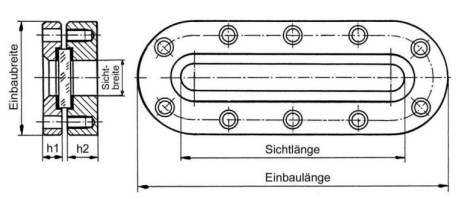

Wymiary wzierników:
Wziernik: Ciśnienie robocze 3 bar, 1.4571, prześwit 50 mm:
Wziernik: Ciśnienie robocze 6 bar, 1.4571, prześwit 30 mm:
Wziernik kołnierzowy podłużny typu 430:
Dane techniczne:
Nominal pressure 16 bar (see table overleaf) / Vacuum
Operating temperatures:
100 °C max. with sodium silicate glass to DIN 8903
243 °C max. with borosilicate glass to DIN 7081
Note: The above indicated temperatures refer to the use of unprotected glass plates, with no protective mica sheets.
Standard materials:
Base frame: RSt 37-2 or HII (boiler plate) / AISI 316 Ti stainless steel
Cover frame: As base frame
Glass plate: Toughened sodium silicate glass to DIN 8903 (max. 100 °C)
Toughened borosilicate glass to DIN 7081 (max. 243 °C)
Gaskets: KLINGERsil C4400, EPDM, Silicone, PTFE, Viton, NBR, Gylon
Cover fastenings: Steel, quality 8.8 / to DIN 912: Stainless steel A4-70
Other materials on request.

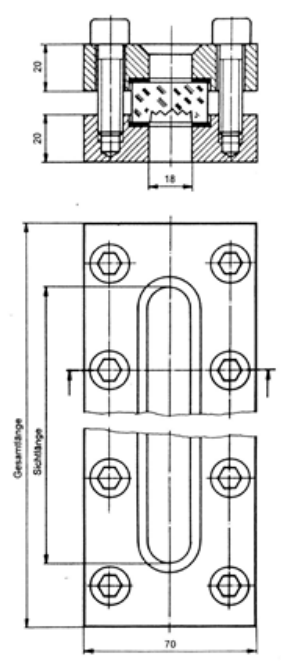

Wymiary wzierników:
Szkła wziernikowe:
