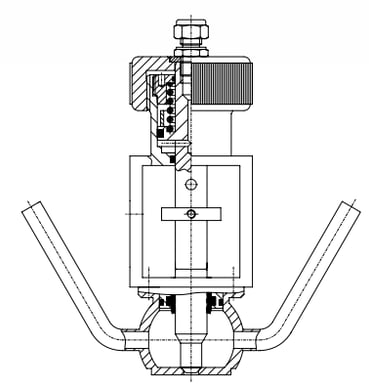

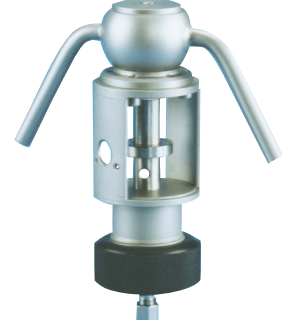

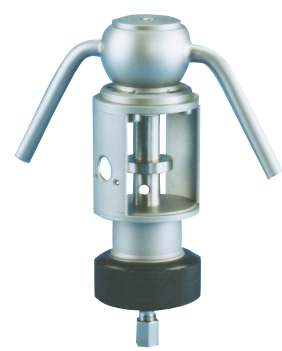

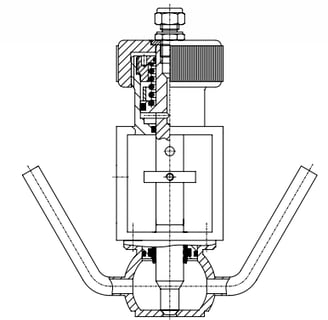

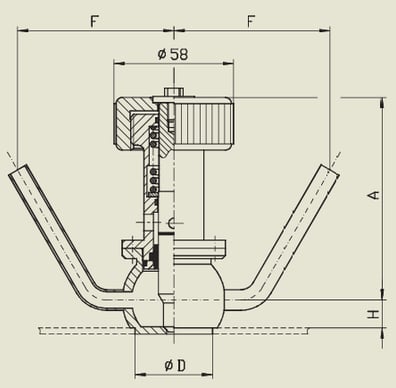

Sampling valve PRD 20

Many tank-type devices have sampling valves installed. They are used to take samples without stopping the production process and without intervening inside the tank.

These valves are used mainly in the food, biotechnology, cosmetics, pharmaceutical industries and wherever a high level of cleaning is needed.

We identify parts on the basis of valve type, photos or technical documentation provided by equipment users.

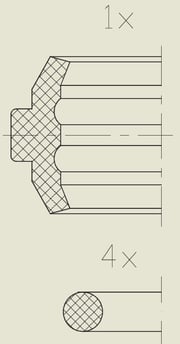

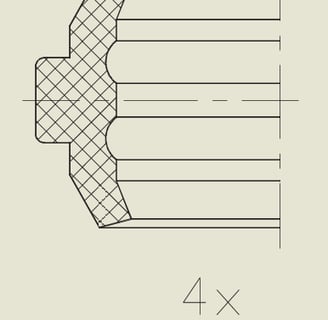

Valve membrane:

Spare parts and accessories for the PRD 20 sampling valve:

Valve operating parameters:

Design Pressure / Design Pressure: -1 to 10 bar

Operating temperature: VMQ diaphragm (silicone), FPM (Viton): max. +135°C

EPDM diaphragm, HNBR: max. +140°C

Certifications: FDA, EU1935/2004

Pneumatically operated valve

PRD 20-FS-H

Manual (hand) valve

PRD 20-HF
